Slip Ring

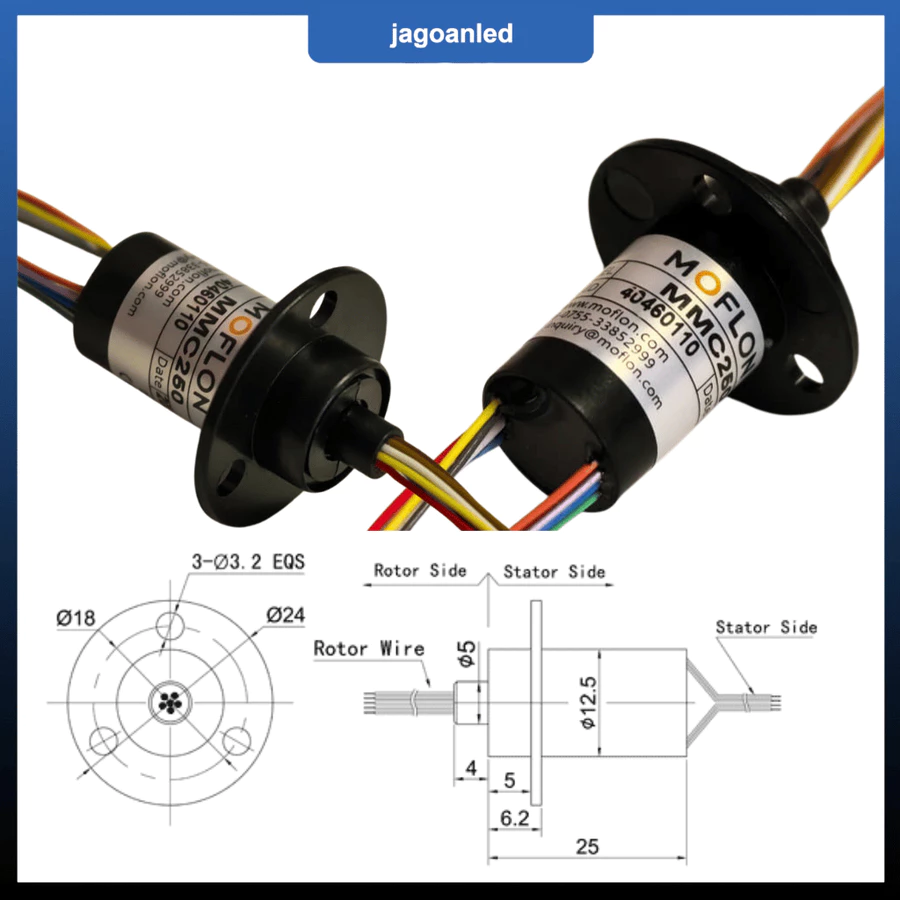

Rotating Cable Small Slip Ring With Flange OD 12.5mm 12 Wire 2A MMC250
Slip ring performa tinggi dengan 12 jalur signal menggunakan material kontak Precious Metal (Gold-to-Gold). Memiliki umur pakai hingga 50 juta rotasi dan sudah CE Certified.
Information
| Model | MMC250 With Flange |
| Jumlah Kabel | 12 Wires |
| OD | 12.5mm |
| Current | Signal (2A) |
| Voltage | 240 VDC/VAC |
| Contact Material | Precious Metal (Gold-to-Gold) |
| Working Life | 50 Juta Rotasi |
| Max Speed | 250 RPM |
| Wiring Code | Standard 12 Color Code (UL Teflon AWG28/30) |
| Sertifikasi | CE, RoHS, RoHS compliant |
